Description

Swing Over Table: 8 1/4″

Distance Between Tailstocks: 22″

Distance Between Centers: 16″

Distance Between Tailstock & Workhead: 17″

Table Work Surface: 5 1/4″ x 27 1/4″

Sub-Table: 8″ x 38″

Table T-Slot: 7/16″

Total Crossfeed Movement: 7 1/4″

Feed Per Handwheel Revolution (Graduated .001″): .100″

Table Traverse: 14″

Fast Feed Per Handwheel Revolution: 2 13/16″

Slow Feed Per Handwheel Revolution: 9/16″

Ratio-fast/slow: 5:1

Column Diameter: 4″

Wheel Head Swivel: 360°

Wheel Spindle Centerline to Table Top: 3 3/4″ – 10 3/4″

Table Swivel: 225°

Griding Wheel Hole Size: 5/8″

Overall Dimensions: 44″ L x 45″ W x 60″ H

Overall Weight: approx. 1,191 lbs.

Equipped

Work Light

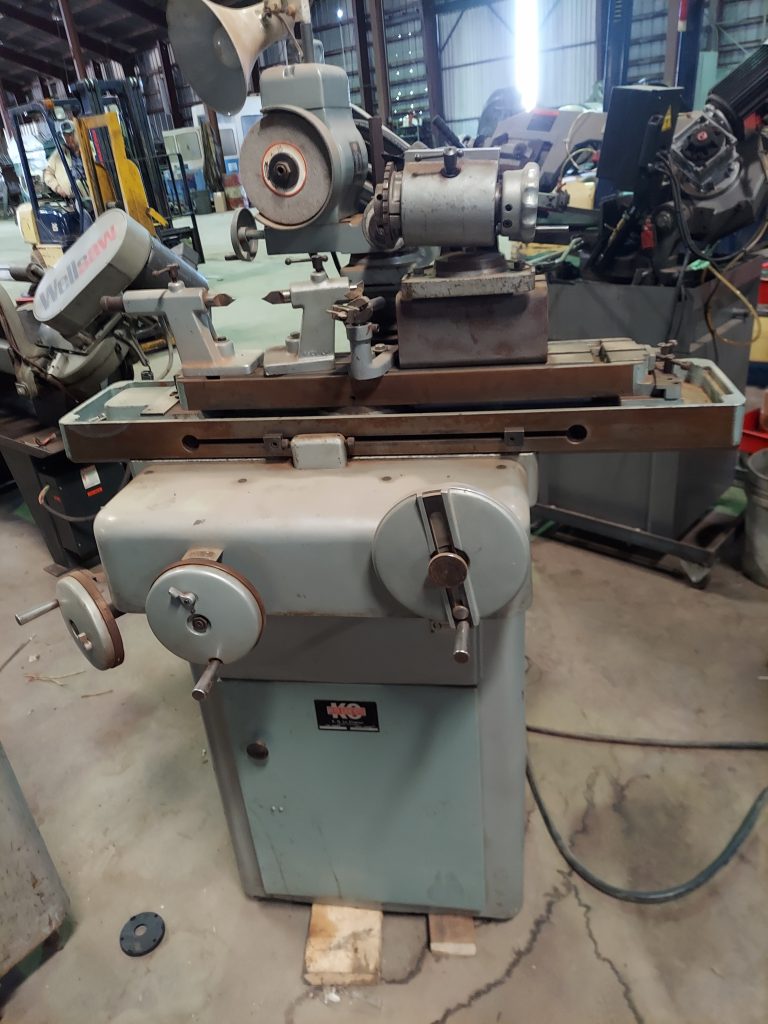

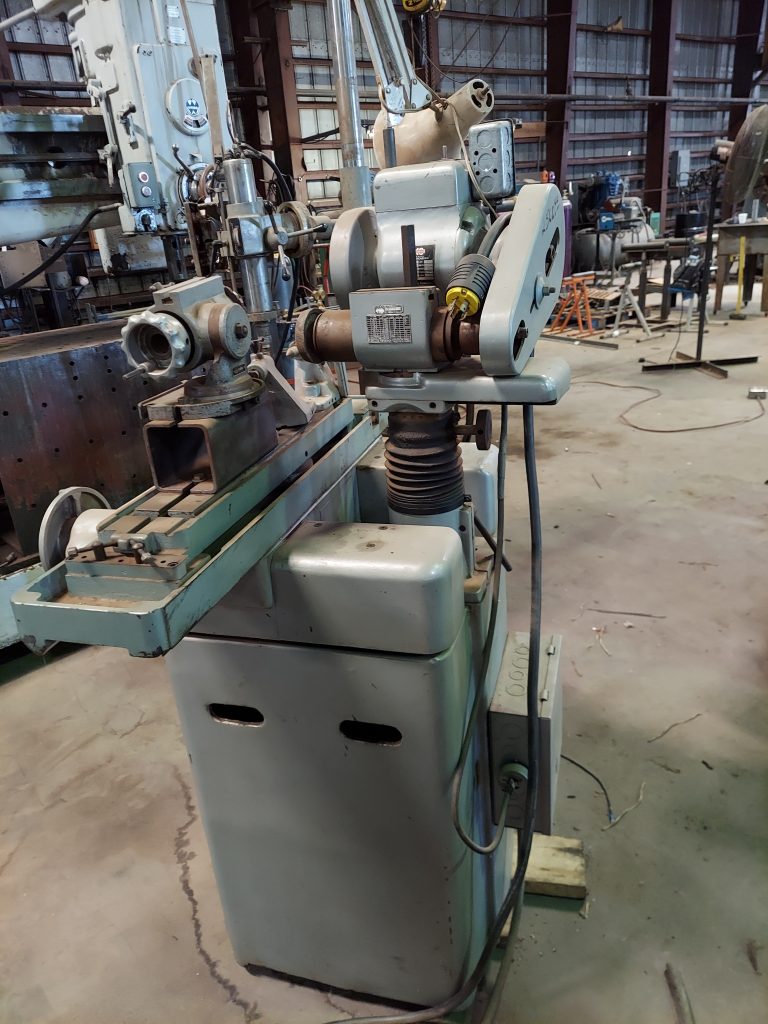

Machine is equipped with B955 Universal Grinding Head, mandrel matching tailstocks, tilting grinding head, tilting table, recirculating coolant system, backlash adjustment.
