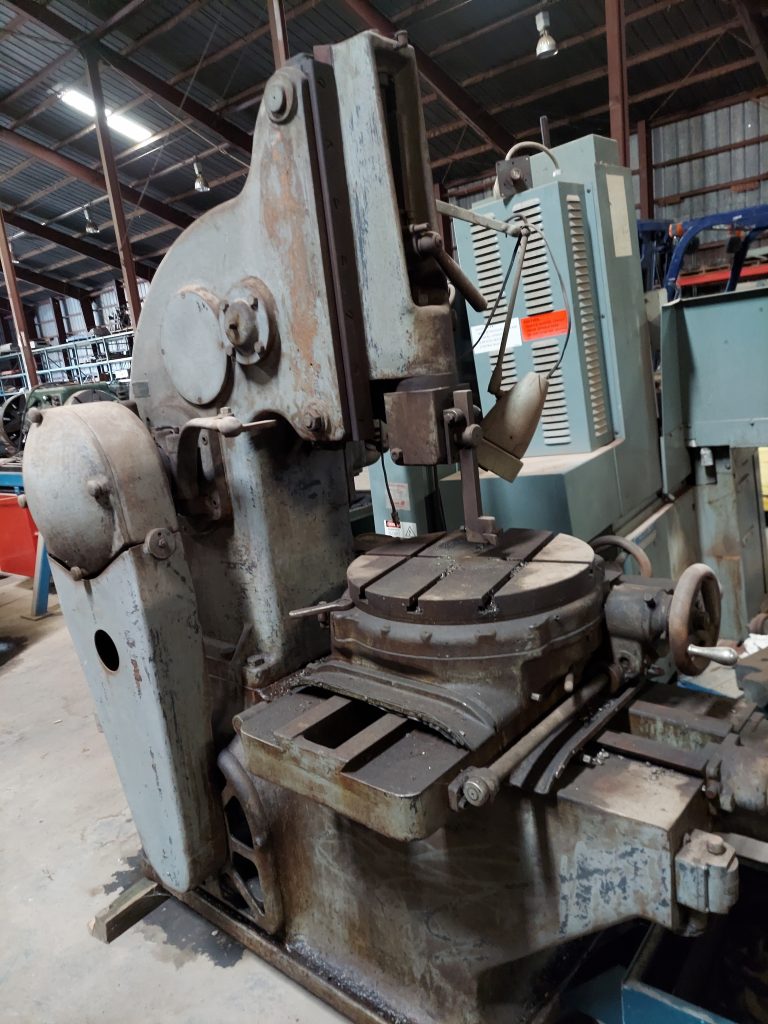

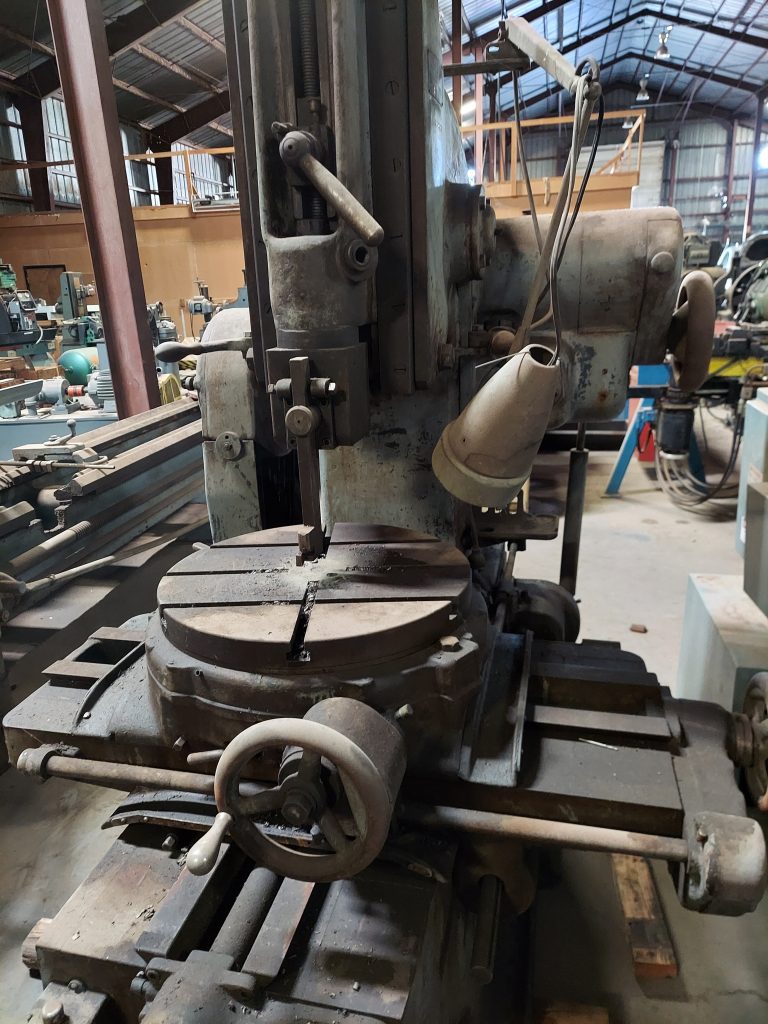

Description

STROKE OF RAM 0 thru 6″
RAM ADJUSTMENT:
Angular, forward at bottom 0 to 5 degrees
Vertical 10″
RAM SPEED: Cutting strokes per minute 33, 49, 76, 116.
COLUMN FACE TO TOOL POST SEAT 18¾”
TOOL POST takes tool ¾” by 1½”
TABLETOP TO END OF RAM:
Maximum (longest stroke) 15″
Maximum (no stroke) 11¾”
TABLETOP TO LOWER END OF RAM BEARING 10″
TABLE TRAVEL: Hand, Power and Rapid Traverse
Longitudinal, Maximum 25″
Transverse 20″
TABLETOP TO LOWER END OF RAM BEARING 10″
TABLE TRAVEL: Hand, Power and Rapid Traverse
Longitudinal, Maximum 25″
Transverse 20″
FEEDS:
Longitudinal and Transverse 0.0027″ to 0.0243″
Rotary Power Feed (on 10″ Radius) 0.009″ to 0.085″
ROTARY TABLE:
Diameter 19¾”
T-Slots: (3) parallel and (1) at right angle
Hand and Power Rotation (Indexing)
MOTOR DRIVES: Wired 440 volts, 3 phase
Main 3 H.P 3.7kw). 220/440 volts.
Dimensions 55” x 75” x 84” Height Approx.
Approximate weight 4,600 lbs.
