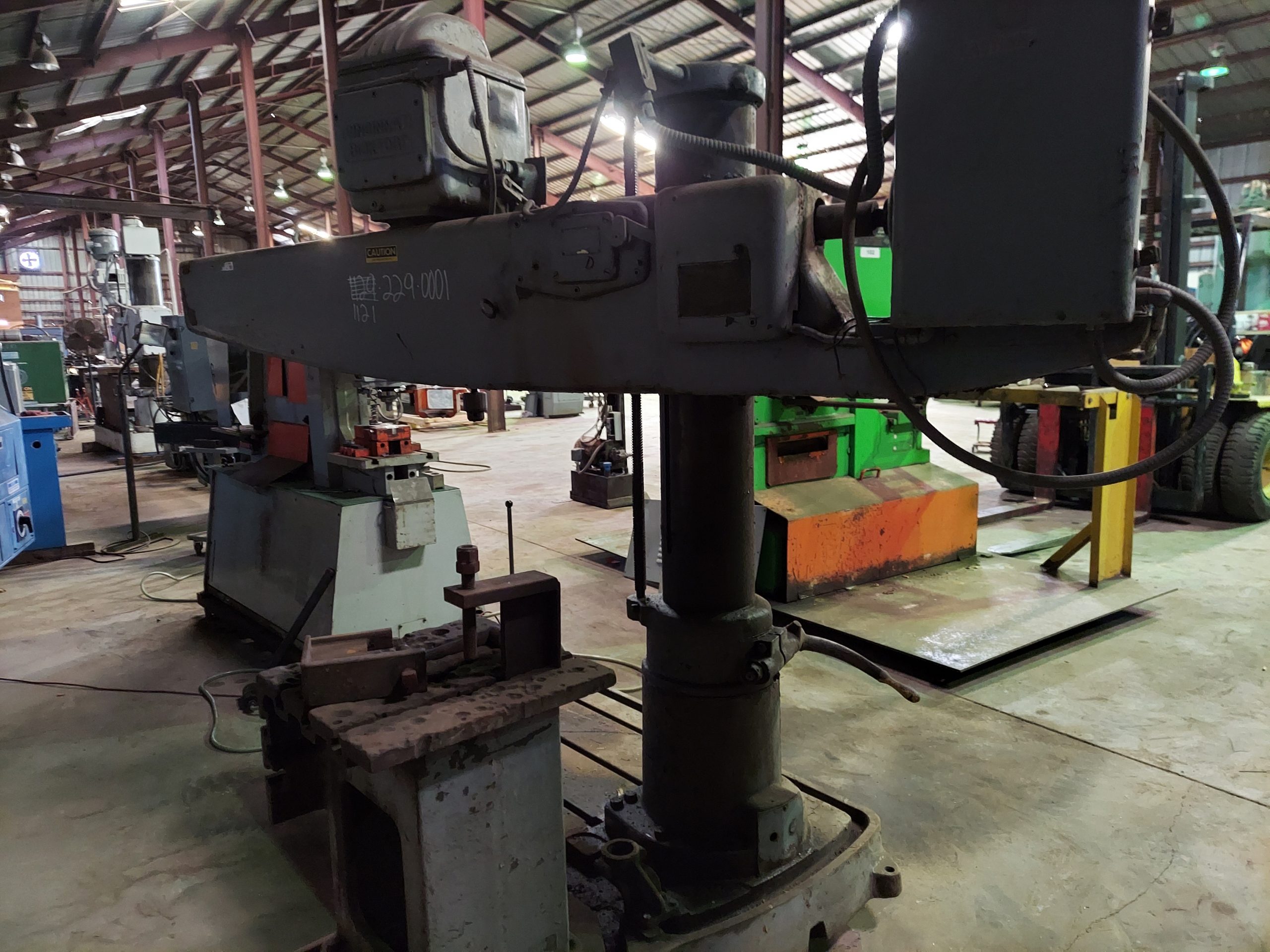

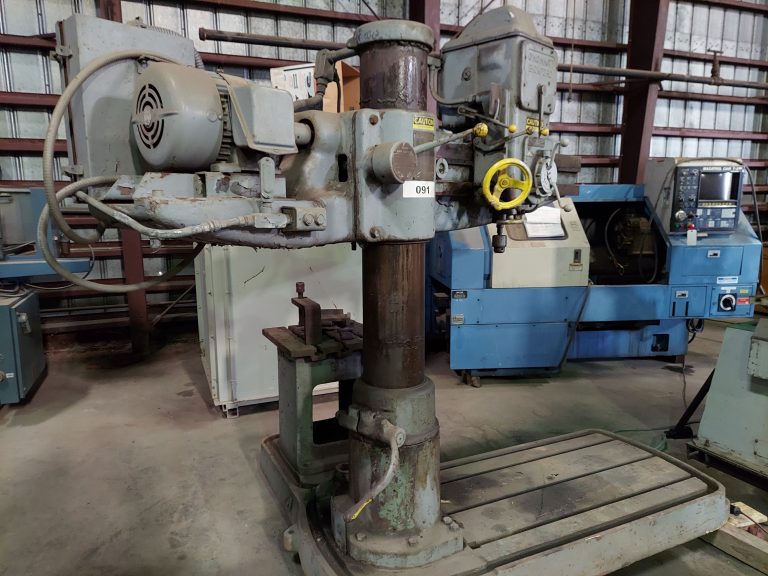

3′ x 9″ Cincinnati Radial Arm Drill
Description
(9) Spindle Speeds: 75 to 1500 RPM
(4) Feeds: 2, 4, 7 & 10 Thousandths per Revolution
Spindle Taper: #4 Morse
Quill Diameter: 2-5/8″
Quill Travel: 6-1/2″
Base Working Size: 30″ x 36″
Distance Centerline of Spindle to Column: 14-1/4″ Min. to 39-3/4″ Max.
Distance Spindle Nose to Base: 25-1/2″ Min. to 52-1/2″ Max.
Equipped
EQUIPPED WITH:
3/16″ to 3/4″ Capacity Jacobs Key Type Drill Chuck with Key
3 HP Motor, Wired 3 Phase, 60 Hz, 208/230 Volts Only
Wired for 230 Volt Operation
Overall Machine Size: 85″ L-R x 34-1/2″ F-B x 80″ High (to floor)
Approx. 5,000 Lbs.
Price
$ 5,000.00
Model
1R
Serial Number
1R5099
CALL TODAY TO INQUIRE
806-762-6504
Product Inquiry
ALL SPECIFICATIONS SUBJECT TO VERIFICATION
SELLER DOES NOT WARRANT THAT USED MACHINERY/EQUIPMENT
COMPLIES WITH O.S.H.A SAFETY STANDARDS. THEREFORE,
COMPLIANCE BECOMES THE RESPONSIBILITY OF THE BUYER.
